Upload and crop image in Asp.net using Jcrop jquery plugin

Introduction: In this article today I am going to explain how we can implement the functionality of Upload and crop image in Asp.net using Jcrop jquery plugin.

Description:

  In the previous article I have explained Image preview after upload in asp.net, Validation for minimum and maximum price using Jquery and Preview image before upload using Jquery and save in asp.net

Add a new webform to project. To implement this functionality follow the given steps:

Step 1: Add the below given script and style sheet between head section of page:

<link href="css/jquery.Jcrop.min.css" rel="stylesheet" type="text/css" />

    <script src="Scripts/jquery.Jcrop.js" type="text/javascript"></script>

    <script src="Scripts/jquery.Jcrop.min.js" type="text/javascript"></script>

<script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.3/jquery.min.js"></script>

    <script src="Scripts/jquery.Jcrop.pack.js" type="text/javascript"></script>

  <script type="text/javascript">

      jQuery(document).ready(function () {

          jQuery('#imgCrop').Jcrop({

              onSelect: storeCoords

          });

      });

      function storeCoords(c) {

          jQuery('#X').val(c.x);

          jQuery('#Y').val(c.y);

          jQuery('#W').val(c.w);

          jQuery('#H').val(c.h);

      };

</script>

To download the Jcrop Jquery Plugin Click Here.

Step 2: Now copy and paste the below design in between <from> </form> tag of page:

<center>

      <fieldset style="width:auto;height:auto;">

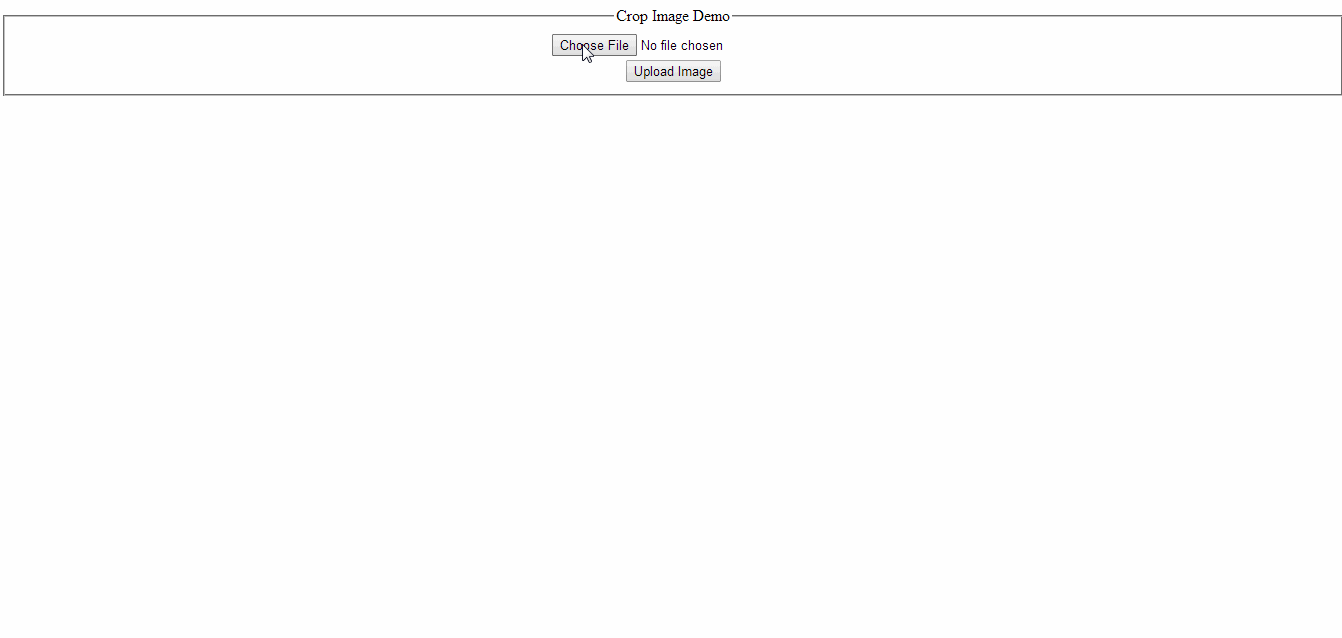

      <legend>Crop Image Demo</legend>

     <asp:Panel ID="pnlUpload" runat="server">

      <asp:FileUpload ID="FileUpload1" runat="server" />

      <br />

      <asp:Button ID="btnUpload" runat="server" OnClick="btnUpload_Click" Text="Upload Image" />

      <asp:Label ID="lblError" runat="server" />

    </asp:Panel>

    <asp:Panel ID="pnlCrop" runat="server" Visible="false" >

      <asp:Image ID="imgCrop" runat="server" Width="500px" Height="500px"/>

      <br />

      <asp:HiddenField ID="X" runat="server" />

      <asp:HiddenField ID="Y" runat="server" />

      <asp:HiddenField ID="W" runat="server" />

      <asp:HiddenField ID="H" runat="server" />

      <asp:Button ID="btnCrop" runat="server" Text="Crop Image" OnClick="btnCrop_Click" />

    </asp:Panel>

    <asp:Panel ID="pnlCropped" runat="server" Visible="false">

      <asp:Image ID="imgCropped" runat="server" />

    </asp:Panel>

    </fieldset>

  </center>

Step 3: after that on Upload image button click write the given code:

In C#:

using System.Drawing;

using System.IO;

using Image = System.Drawing.Image;

using System.Drawing.Drawing2D;

protected void btnUpload_Click(object sender, EventArgs e)

    {

        string uploadFileName = "";

        string uploadFilePath = "";

        if (FileUpload1.HasFile)

        {

            string ext = Path.GetExtension(FileUpload1.FileName).ToLower();

            if (ext == ".jpg" || ext == ".jpeg" || ext == ".gif" || ext == ".png")

            {

                uploadFileName = Guid.NewGuid().ToString() + ext;

                uploadFilePath = Path.Combine(Server.MapPath("~/images"), uploadFileName);

                try

                {

                    FileUpload1.SaveAs(uploadFilePath);

                    imgCrop.ImageUrl = "~/images/" + uploadFileName;

                    imgCrop.Width =500;

                    pnlCrop.Visible = true;

                    pnlCropped.Visible = false;

                }

                catch (Exception ex)

                {

                    lblError.Text = "Error! Please try again.";

                }

            }

            else

            {

                lblError.Text = "Selected file type not allowed!!! Upload only Jpeg, Png, Gif Files";

            }

        }

        else

        {

            lblError.Text = "Select file first!!!";

        }

    }

In VB:

Imports System.Drawing

Imports System.IO

Imports Image = System.Drawing.Image

Imports System.Drawing.Drawing2D

Protected Sub btnUpload_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnUpload.Click

        Dim uploadFileName As String = ""

        Dim uploadFilePath As String = ""

        If FileUpload1.HasFile Then

            Dim ext As String = Path.GetExtension(FileUpload1.FileName).ToLower()

            If ext = ".jpg" OrElse ext = ".jpeg" OrElse ext = ".gif" OrElse ext = ".png" Then

                uploadFileName = Guid.NewGuid().ToString() & ext

                uploadFilePath = Path.Combine(Server.MapPath("~/images"), uploadFileName)

                Try

                    FileUpload1.SaveAs(uploadFilePath)

                    imgCrop.ImageUrl = Convert.ToString("~/images/") & uploadFileName

                    imgCrop.Width = 500

                    pnlCrop.Visible = True

                    pnlCropped.Visible = False

                Catch ex As Exception

                    lblError.Text = "Error! Please try again."

                End Try

            Else

                lblError.Text = "Selected file type not allowed!!! Upload only Jpeg, Png, Gif Files"

            End If

        Else

            lblError.Text = "Select file first!!!"

        End If

    End Sub

Step 4: On Crop button Click write the code:

In C#:

    protected void btnCrop_Click(object sender, EventArgs e)

    {

        string fileName = Path.GetFileName(imgCrop.ImageUrl);

        string filePath = Path.Combine(Server.MapPath("~/images"), fileName);

        string cropFileName = "";

        string cropFilePath = "";

        if (File.Exists(filePath))

        {

            System.Drawing.Image orgImg = System.Drawing.Image.FromFile(filePath);

            Rectangle CropArea = new Rectangle(

                Convert.ToInt32(X.Value),

                Convert.ToInt32(Y.Value),

                Convert.ToInt32(W.Value),

                Convert.ToInt32(H.Value));

            try

            {

                Bitmap bitMap = new Bitmap(CropArea.Width, CropArea.Height);

                using (Graphics g = Graphics.FromImage(bitMap))

                {

                    g.DrawImage(orgImg, new Rectangle(0, 0, bitMap.Width, bitMap.Height), CropArea, GraphicsUnit.Pixel);

                }

                cropFileName = "crop_" + fileName;

                cropFilePath = Path.Combine(Server.MapPath("~/images"), cropFileName);

                bitMap.Save(cropFilePath);

                // Response.Redirect("~/images/" + cropFileName, false);

                imgCropped.ImageUrl = "~/images/" + cropFileName;

                pnlCropped.Visible = true;

                pnlCrop.Visible = false;

            }

            catch (Exception ex)

            {

            }

        }

    }

In VB:

  Protected Sub btnCrop_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnCrop.Click

        Dim fileName As String = Path.GetFileName(imgCrop.ImageUrl)

        Dim filePath As String = Path.Combine(Server.MapPath("~/images"), fileName)

        Dim cropFileName As String = ""

        Dim cropFilePath As String = ""

        If File.Exists(filePath) Then

            Dim orgImg As System.Drawing.Image = System.Drawing.Image.FromFile(filePath)

            Dim CropArea As New Rectangle(Convert.ToInt32(X.Value), Convert.ToInt32(Y.Value), Convert.ToInt32(W.Value), Convert.ToInt32(H.Value))

            Try

                Dim bitMap As New Bitmap(CropArea.Width, CropArea.Height)

                Using g As Graphics = Graphics.FromImage(bitMap)

                    g.DrawImage(orgImg, New Rectangle(0, 0, bitMap.Width, bitMap.Height), CropArea, GraphicsUnit.Pixel)

                End Using

                cropFileName = Convert.ToString("crop_") & fileName

                cropFilePath = Path.Combine(Server.MapPath("~/images"), cropFileName)

                bitMap.Save(cropFilePath)

                ' Response.Redirect("~/images/" + cropFileName, false);

                imgCropped.ImageUrl = Convert.ToString("~/images/") & cropFileName

                pnlCropped.Visible = True

                pnlCrop.Visible = False

            Catch ex As Exception

            End Try

        End If

    End Sub

Build and run the project.

Download project:
